Stripping Machines Komax

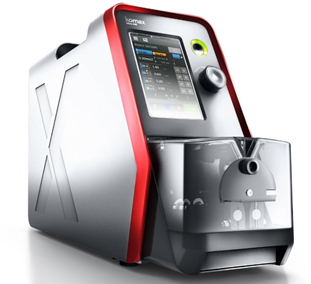

Mira 440/440SSF

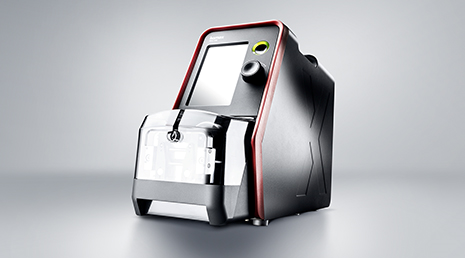

The Mira 440 wire stripper is a great choice for wire harnesses with a large proportion of coaxial or triaxial cables. It is particularly suitable for small to medium-sized series runs. The rotary flat blades ensure the high level of precision required for coaxial connectors. The Mira 440 processes single-conductor wire and multi-core cable, as well as semiflex cables in the Mira 440 SF model. The comprehensive functions, simple operation and smart design make the machine a specialist for coaxial cable processing.
Technical data
| Coaxial cable: | Max. outer diameter: 9 mm (0.354 in.) Min. conductor diameter: 0.15 mm (0.059 in.) Max. number of layers: 9 |
| Individual wire: | Conductor cross section (stripping) : 0.02 – 13 mm2 (AWG 36 – 6) |
| Conductor cross section (twisting): | 0.14 – 2.5 mm2 (AWG 26 – 13) |
| Max. conductor cross section for cutting: | 2 mm2 (AWG 14 / Ø 1.6 mm) |
| General: | Max. strip length: 40 mm (1.575 in.) Max. pull-off length: 44 mm (1.732 in.) Min. breakout length: 26 mm (1.024 in.) Increments for incision Æ and strip length: 0.01 mm (0.004 in.) Gripper force: Programmable Blade type: Rotary flat blades with centralizers Article library: Max. number of articles 1000 Sequence function: Max. number of steps 100 Sequence library: Max. number of entries 1000 |
| Electrical connection: | 50/60 Hz, 100 – 240 V AC |
| User interface: | 5” color touchscreen, multi-touch function + dial |
| Ambient temperature for operation: | 5 – 40 °C |
| Dimensions(W x H x D): | 141×292×483 mm(5.5×11.4 ×19in) |
| Weight: | 14 kg (31 lbs.) |
| CE conformity: | Conforms to the CE directives on machine safety and electromagnetic compatibility. |
| Compressed Air Connection: | 5 – 8 bar (73 – 116 psi) |

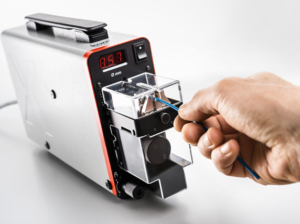

Mira 32

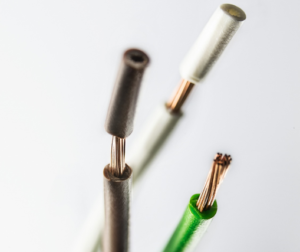

The Mira 32 electric wire stripper is the ideal entry-level model for semi-automated wire processing when hand tools no longer meet the requirements. It is designed for wires that are used in the automotive and industrial sectors and can be stripped with V-blades. The machine with setting dials can process leads with up to 4 mm outer diameter and 25 mm strip length. Single-conductor wires and inner wires of multi-core cables can be processed with full or partial stripping.
Technical data
| Conductor cross section: | 0.03 – 3.3 mm²(AWG 32 – 12) |
| Conductor diameter: | 0.2 – 3 mm (0.008 – 0.12 in.) |
| Outer diameter: | 0.6 – 4 mm (0.02 – 0.16 in.) |
| Strip length: | 1 – 25 mm (0.04 – 1 in.) |
| Pull-off length: | 2 – 25 mm (0.08 – 1 in.) |
| Resolution of the incision diameter display: | 0.01 mm (0.0004 in.) |
| Breakout length L: | Standard gripper: L = 14 mm (L=0.6 in.) Thin gripper: L = 11 mm (L = 0.44 in.) Option short breakout length: L = 6.6mm (L = 0.16 in.) |
| Typical cycle time: | approx. 0.3 s |
| Gripper force: | Mechanically adjustable |
| Electrical connection: | 1 × 100 – 240 V | 50/60 Hz | 40 VA |
| Compressed air connection: | 5 – 7 bar (73 – 102 psi) |
| Dimensions (W x H x D): | 81 x 191 x 352 mm |
| Weight: | 4.5 kg |
CE conformity: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Send inquiry

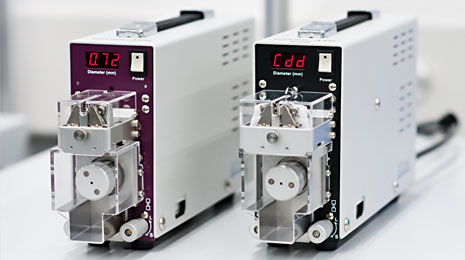

Cosmic 32M
Stripping machine with a quicker cycle time, able to strip wide variety of wires with high precision. Optional configuration CDD (conductor damage detector).
Technical data
| Wire size: | AWG#12-AWG#32 |
| Stripping length: | 1.5 – 25.0 mm |
| Partial stripping length: | Minimalno 1.0 mm |
| Machine cycle: | max. 0.3 sec. |
| Cable types: | halogen-free, rubber, PVC,. |
| Power supply: | AC 100V – 240V (40VA) |
| Weight: | 4.5 kg |

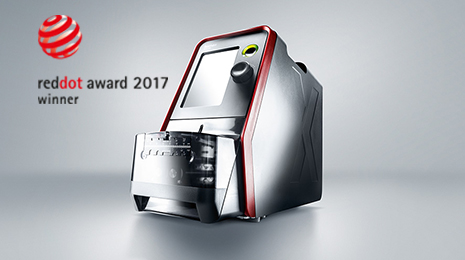

Mira 230
Wire processing today involves a large mix of products as requirements are becoming ever more difficult. The Mira 230 from Komax is the answer to this situation. It delivers an extraordinarily wide range of applications, simple handling and increased productivity. With special functions and its article library, the Mira 230 achieves a high level of reproducible quality. Its ability for sequence makes it the first choice for multi-conductor processing.
Technical data
| Stripping length: | 1,5mm–46mm |
| Max. outer diameter: | 6,5mm |
| Wire cross section (stripping): | 0.03–8mm2(AWG32–AWG8) |

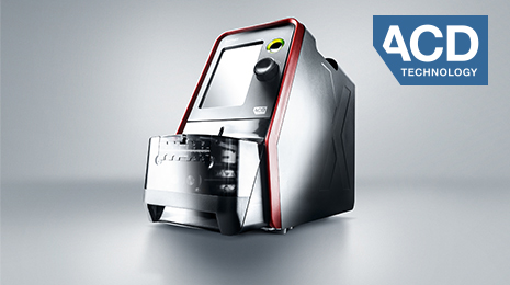

Mira 230Q
Wire processing today involves a large mix of products as requirements are becoming ever more difficult. The Mira 230 Q from Komax is the answer to this situation. It delivers an extraordinarily wide range of applications, simple handling and increased productivity. With special functions and its article library, the Mira 230 Q achieves a high level of reproducible quality. Its ability for sequence makes it the first choice for multi-conductor processing. The Mira 230 Q now features integrated ACD (Automatic Conductor Detector). Its ability for sequence makes it the first choice for multi-conductor stripping.
Technical data
| Stripping length: | 1,5mm–46mm |
| Max. outer diameter: | 6,5mm |
| Wire cross section (stripping): | 0.03–8mm2(AWG32–AWG8) |
Mira 340
The programmable Mira 340 is designed for universal use while maintaining maximum precision. It is perfect for processing wires and insulation material with demanding requirements. The Mira 340 is fitted with a rotary head with 4X-blades and offers unique functions designed to reduce production time and increase quality. As a result, a single machine can be used for a huge range of applications. Thanks to sequential processing, multi-conductor cables and multi-layer insulation material can be processed quickly, thereby saving time. Meanwhile, its ease of use increases productivity.
Technical data
| Conductor cross section (stripping): | 0.013 – 16 mm² (AWG 36 – 5*) |
| Conductor cross section (twisting): | 0.14 – 2.5 mm² (AWG 26 – 13) |
| Max. conductor cross section for cutting: | 2 mm² (AWG 14 / SP 1.6 mm) |
| Max. outer diameter (OD): | 8 mm (0,315 in.) |
| Strip length: | SP ≤ 7.5 mm 0.01 – 72 mm (0.06 – 2.83 in.) |
